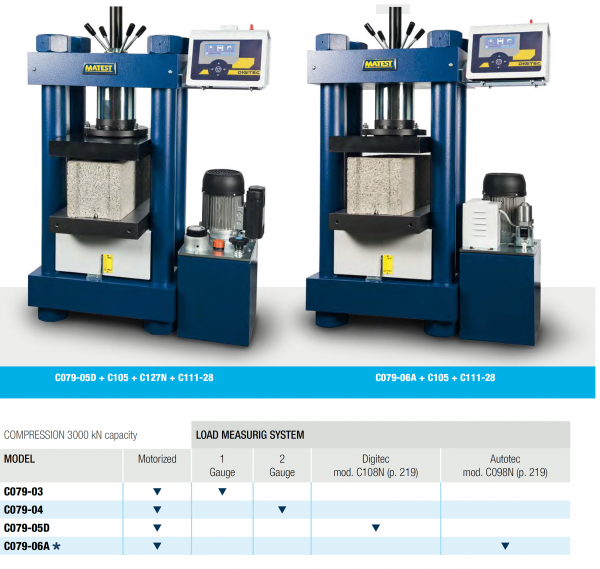

COMPRESSION TESTING MACHINE 3000 KN CAPACITY TO TEST BLOCKS MAX. 500X300 MM, CUBES UP TO 300 MM SIDE AND CYLINDERS UP TO Ø 160X320 MM

Category:

STANDARDS: EN 772-1 | ASTM C39, C140, C1314 | AASHTO T22 | NF P18-411 | BS 1610, 6073 | GOST 10180-2012

DIAL GAUGES MODELS
Gauges Ø 250 mm with specific
resistance scales for cubes 150 mm
and cylinders Ø 150 – 160 mm
Gauges divisions: 3000 kN div. 10 kN
600 kN div. 2 kN

MAIN FEATURES FOR ALL MODELS
Max. vertical daylight between platens: 336 mm
Horizontal daylight between columns: 340 mm
Compression platens 510x320xh55 mm
High stiffness and heavy weight 4 columns frame
(german-style).
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 900x600x1500 mm approx.
Weight: 1150…1220 kg
