DESIGNED TO TEST:
– CONCRETE TILES: EN 491
– CLAY TILES: EN 538
– FLAT BLOCKS: BS 6073:1 app. C.
– HOLLOW TILES: UNI 2107
– CLAY FLOORING BLOCKS: UNI 9730-3
– PAVING SLABS, ROOF TILES,
FLOOR TILES, TERRAZZO TILES,
CERAMICS, BRICKS, etc.

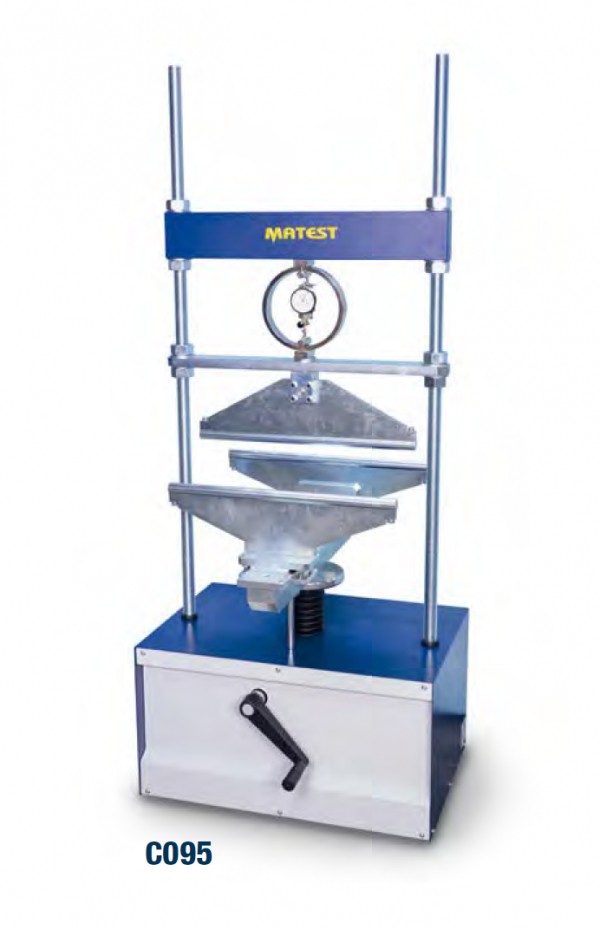

The machine consists of:
steel frame, one upper
bearer and two lower adjustable
bearers, mechanical
hand-operated screw jack
and a 10 kN capacity proving
ring to measure the applied
load.
TECHNICAL DETAILS
– Proving ring 10 kN capacity, complete with calibration certificate
(proving rings with larger capacities up to 50 kN on request p. 573)
– Vertical clearance between the bearers, adjustable from 50 to 300 mm
– Distance between lower bearers, adjustable from 50 to 500 mm
– Bearers dimensions: Ø 25×500 mm
– Accuracy: 1% of the applied load
Dimensions: 710x610x1520 mm
Weight: 120 kg approx.
