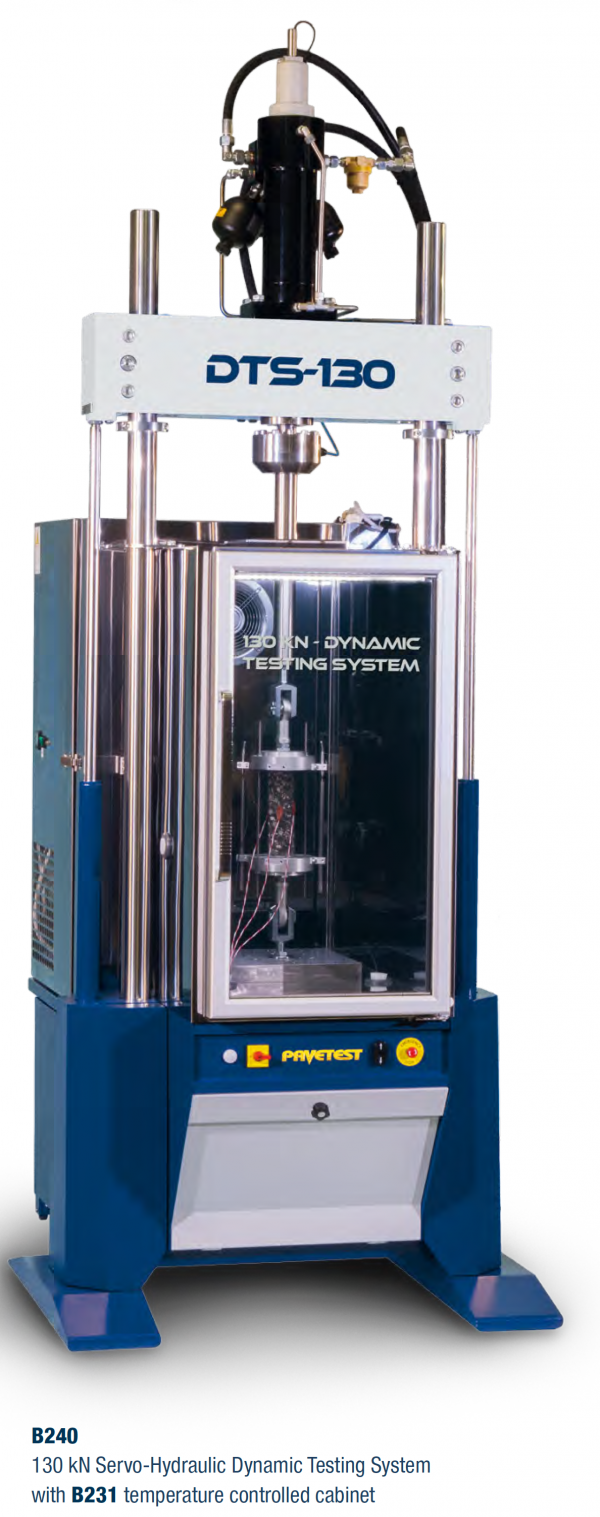

B240 130 KN SERVO-HYDRAULIC DYNAMIC TESTING SYSTEM (DTS-130)

Categories: , ,

The DTS-130 Dynamic Testing System is a servo-hydraulic testing machine utilizing digital control of a high performance servo valve to provide
accurate loading wave shapes up to 100 Hz. The DTS-130 is Pavetest’s highest capacity Dynamic Testing System and completes the range of
standard universal testing machines. The system can be operated in tension, compression dynamic loading and is suited to testing a diverse
range of engineering materials and/or large asphalt specimens at very cold temperatures.
The DTS-130 is underpinned by Pavetest’s leading edge CDAS digital controller, TestLab software and a full complement of accessories, hardware
and software in perfect unison.

MAIN FEATURES
Robust two column load frame.
Double acting servo hydraulic, equal area type with
low friction, long life bearings and seals.
Portable temperature control unit.
Fully configurable to suit a large range of testing
applications.
Digital Servo-Hydraulic control.
DynafloTM HPS variable frequency drive (VFD)
provides dynamic speed control of the pump motor
ensuring quiet operation.
4 axis control and 16 channel data acquisition as
standard.

The machine includes:
Rigid two column load frame
130 kN Servo-hydraulic actuator (100 mm Stroke)
10 kW Hydraulic Power Supply
16 Channel Control and Data Acquisition System
(CDAS) & TestLab software
Load cell (± 130 kN)
100 mm actuator LVDT

TECHNICAL SPECIFICATIONS
Load frame:
Horizontal Space: 60 cm
Vertical Space: 100 cm
Servo actuator:
Capacity: ± 130kN Static ± 100kN Dynamic
Frequency: Up to 100Hz
Stroke: 100 mm
Hydraulic Power Supply:
Pressure: Up to 210 bar, user defined
Flow rate: 20 litres/min
Dimensions: 1150 (h) x 600 (d) x 1100 (w) mm
Power supply: 380V 50Hz or 208V 60Hz 12kW 3ph
Power Supply:
380V 50Hz 3ph + neutral 12kW or
208V 60Hz 3ph + 12kW (B240)
230V 50Hz 1ph 1.3kW (B231)
230V 50Hz 1ph 3.1kW (B232)
Dimensions:
3005 (h) x 1070 (d) x 1090 (w) mm load frame
3005 (h) x 1630 (d) x 1090 (w) mm with temperature
controlled cabinet
Weight:
680 kg approx. load frame
1360 kg approx. load frame with temperature
controlled cabinet and oil-filled HPS

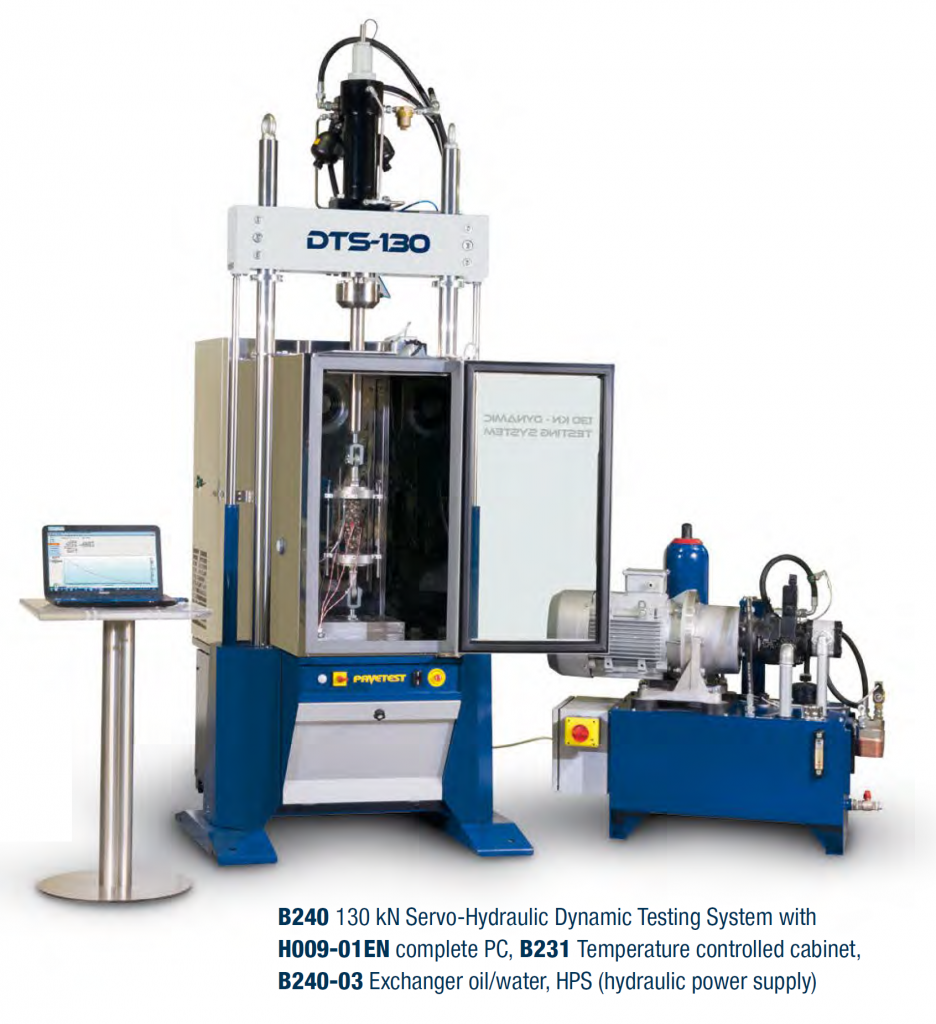

The Hydraulic Power Supply (HPS) utilizes a variable flow pump with a working pressure up to 210 Bar. The customer can choose either water
(heat exchanger) or air (Electric fan) oil cooling. Features include; low oil, over temperature and dirty filter indication, remote starting and user
selectable working pressure (via TestLab).

B231 Temperature controlled cabinet:
-20 °C to +80 °C to suit DTS-30 or DTS-130
or
B232 Temperature controlled cabinet:
-40 °C to +80 °C to suit DTS-30 or DTS-130
B233 Temperature controlled cabinet:
-50 °C to +100 °C to suit DTS-30 or DTS-130

RECOMMENDED ACCESSORIES
H009-01EN PC complete with LCD monitor 22”, keyboard,
mouse, cables and installation of Testlab software
B250-07 KIT Temperature measuring kit (refer to p. 177)
