B225 STS-25 STATIC TESTING SYSTEM – THE MOST VERSATILE TESTING MACHINE IN THE MARKET

Categories: , ,

STANDARDS: ASTM D7313-07a | AASHTO TP105-13 | AASHTO TP124 | ASTM D8044 | ASTM WK 26816 | AASHTO T 314-12
AASHTO TP10-1993 | TxDOT_ Tex-248-F

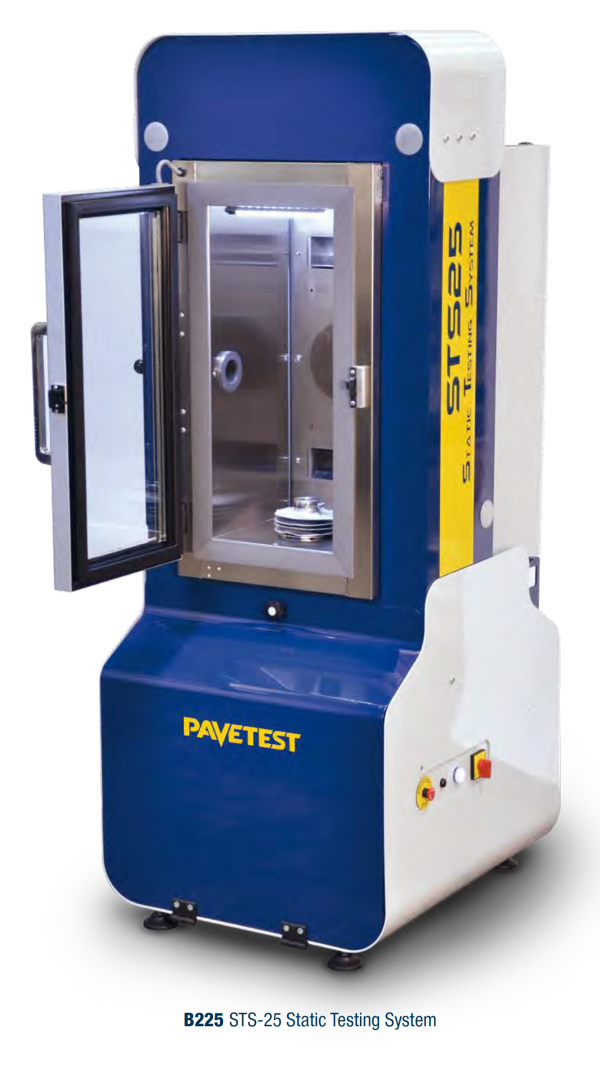

The Pavetest 25kN Static Testing System (STS-25) is an electro-mechanical servo-controlled testing machine utilizing digital control of a high
performance electro-mechanical actuator to provide accurate loading rates up to 50mm/minute, designed to perform a range of static tests;
including: Overlay, SCB, DCT, TSRST and DTT
The STS-25 is underpinned by Pavetest’s leading edge CDAS digital controller, TestLab software and a full complement of accessories hardware
and software in perfect unison.

MAIN FEATURES
Compact, fully self-contained, precision
engineered unit.
Precision electro-mechanical actuator (silent
operation).
Suitable for a range of testing protocols.
A range of two piece climatic chambers.
Operator can monitor, set and “Auto tune” the
temperature controller via the PC.
Optional swivel stand allows the unit to be oriented
vertically or horizontally.

The machine includes:
Rigid two column load frame
25 kN electro-mechanical actuator (30 mm stroke)
8 channel Control and Data Acquisition System (CDAS) &
TestLab software
Load cell (± 30 kN)
30 mm actuator LVDT

Horizontal configuration complete
with swivel stand B225-04

TECHNICAL FEATURES
Electro-mechanical unit. The machine applies constant rate of

loading to a specimen that is placed in the load frame.
The system comprises a load frame, with a load cell, integral
displacement transducer, insulate cabinet, Control and Data
Acquisition System (CDAS). The insulated chamber with small
glass door reduces heat loss whilst providing uninterrupted view
of the specimen.
Versatile. An optional swivel stand allows the unit to be oriented
vertically or horizontally; to suit the application.

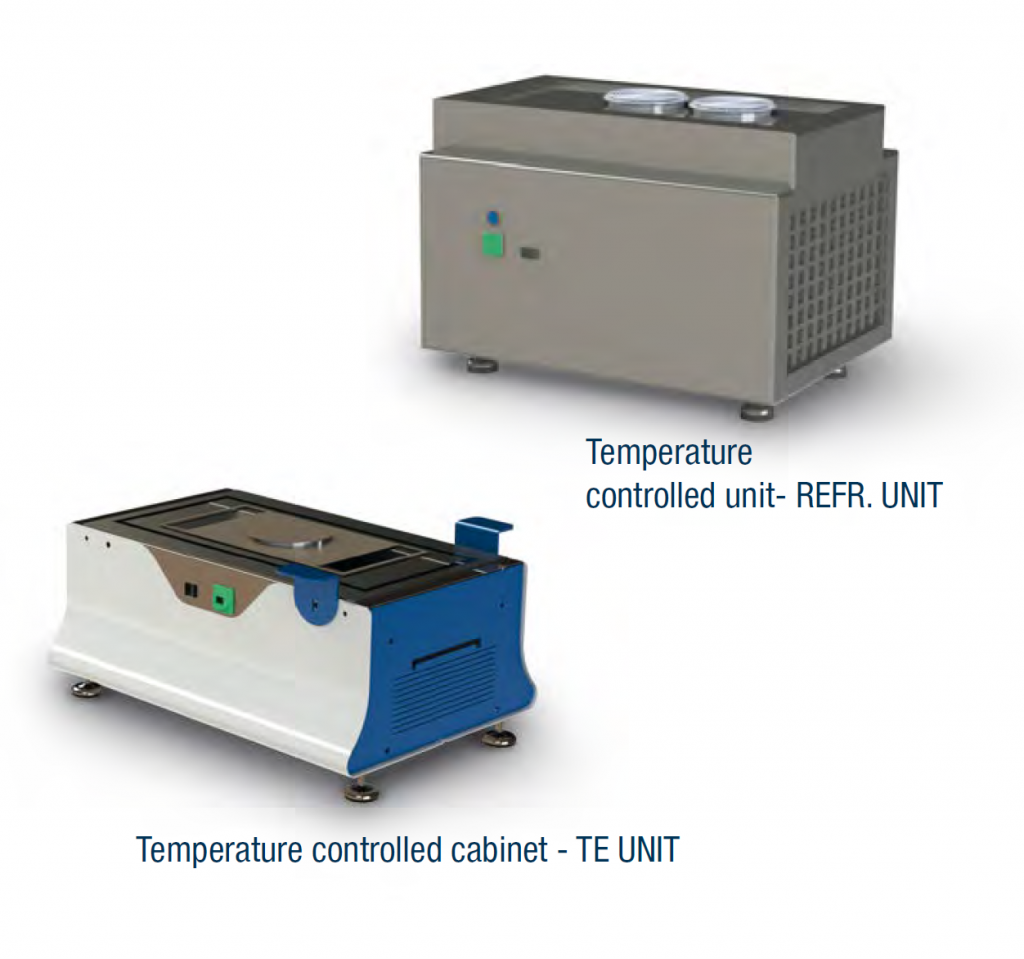

Portable temperature control unit. We offer three models of
temperature control unit, with different temperature ranges, to
cover a number of international testing standards.

TECHNICAL SPECIFICATIONS
Load Capacity: Up to 25kN
Actuator stroke: 30 mm
Testing space: 400 mm
Loading rate: 0.3mm/min. to 50mm/min.
Temperature range: 10 to 60 °C (thermoelectric unit)
-20 to 80 °C or -40 to 80 °C (refrigeration unit)
Mains Power: 230V 50-60Hz 1ph (B225)
230V 50-60Hz 1ph (thermoelectric unit)
230V 50Hz 1ph (refrigeration unit)

NEEDED ACCESSORIES
B225-01 Temperature controlled cabinet – TE UNIT.
+10 °C to +60 °C TO SUIT STS-25
or
B225-02H Temperature controlled cabinet – REFR. UNIT.
Horizontal configuration: -20 °C to +80 °C to suit STS-25
or
B225-03H Temperature controlled cabinet – REFR. UNIT.
Horizontal configuration: -40 °C to +80 °C to suit STS-25
or
B225-02V Temperature controlled cabinet – REFR. UNIT.
Vertical configuration: -20 °C to +80 °C to suit STS-25
or
B225-03V Temperature controlled cabinet – REFR. UNIT.
Vertical configuration: -40 °C to +80 °C to suit STS-25

OPTIONAL ACCESSORIES
H009-01EN PC 22″ with lcd screen
B250-07-KIT Temperature measuring KIT
B225-04 swivel stand (only for B225-01)

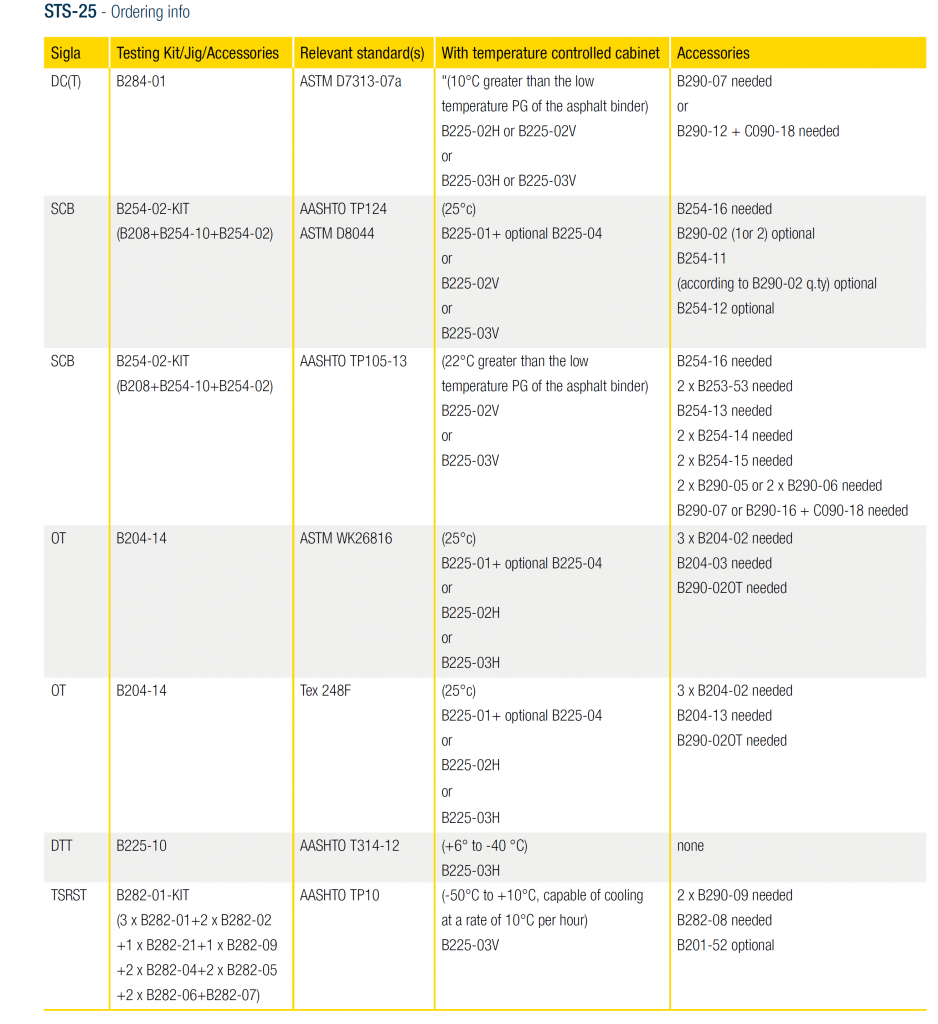

For test configuration and related jigs, please consult p. 182-192
