ACCESSORIES TO COMPRESSION AND FLEXURAL TESTING MACHINES

Category:

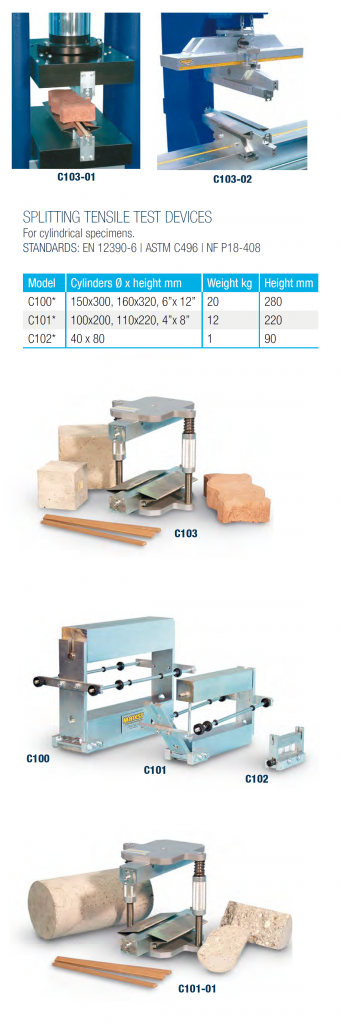

SPLITTING TENSILE TEST DEVICES
For cylindrical specimens.
STANDARDS: EN 12390-6 | ASTM C496 | NF P18-408

C101-01*
SPLITTING TENSILE TEST DEVICE
For cylindrical specimens from Ø 100×200 mm (4”x8”) to
Ø 160×320 mm (6”x12”).
The base is equipped with flat springs centering and keeping in
position the specimen.
Two columns with adjustable height sustain the upper plate by two
springs.
This item is an alternative solution to mod. C100 + C101
Dimensions: 350x250xh264 mm
Weight: 17 kg approx.

C103*
SPLITTING TENSILE TEST DEVICE
Used to perform tests on concrete cube specimens 100 and 150
mm and on concrete block pavers.
STANDARDS: EN 12390-6, EN 1338
Dimensions: 350x250x264 mm
Weight: 17 kg approx.

*Note: To perform the test, these devices have to be used with
a concrete compression machine equipped with a low
capacity measuring range (see dual low range, p. 313),
or with a flexural frame.

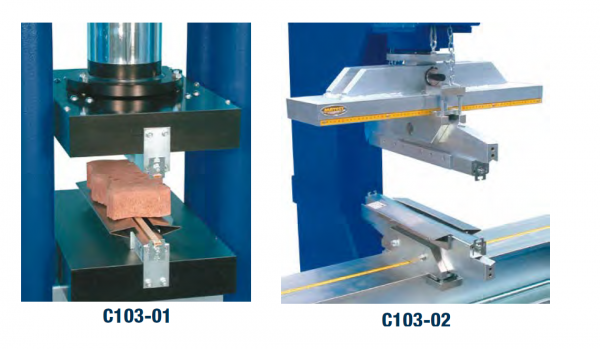

C103-01*
SPLITTING TENSILE TEST DEVICE
Same as mod. C103 but to perform tests on concrete block pavers
having max. dimensions 300 x 500 mm, and for tests on concrete
cube specimens 100, 150, 200 mm, and any type of block and
prismatic specimens. This splitting device is directly fixed on the
compression platens of the block testers having 2000kN or 3000kN
capacity.
Weight: 10 kg approx.

C103-02*
SPLITTING TENSILE DEVICE
Same to mod. C103-01, but to be fixed to the flexural frames serie
C091-02N (p. 292), C090-06 (p. 294), C095N (p. 296) and
C096N (p. 300).
ACCESSORIES
C100-01 STANDARD: EN 12390-6
PACKING STRIPS, dimensions 4x10x350 mm to be used
for splitting tensile tests with mod. C100, C101, C101-01
C103. Pack of 100 pieces.
C100-02 STANDARDS: EN 1338, EN 12390-6
PACKING STRIPS, dimensions 4x15x350 mm to be used
for splitting tensile tests with mod. C103.
Pack of 100 pieces.

C100-03 STANDARDS: EN 1338, EN 12390-6
PACKING STRIPS, dimensions 4x15x540 mm, to be used
for splitting tensile tests with the device mod. C103-01.
Pack of 100 pieces
C109-12(N) SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for TENSILE SPLITTING TESTS on cylinders,
cubes and concrete blocks.
STANDARDS: EN 1338, EN 12390-6
General description and technical details: see UTM2 p. 18

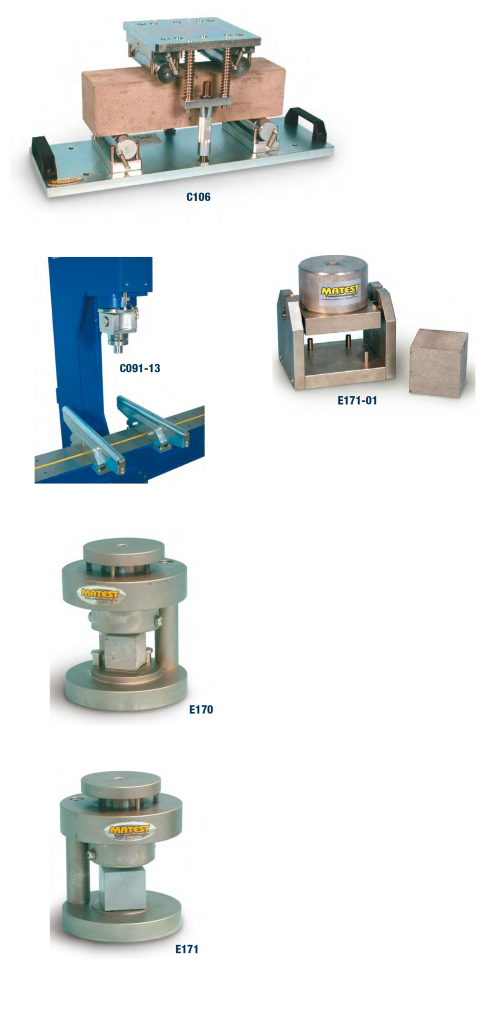

C106
FLEXURAL DEVICE FOR TWO POINT AND
CENTRE POINT TESTS ON CONCRETE BEAMS
100X100X400/500 AND 150X150X600/750 MM
STANDARDS: EN 12390-5 | ASTM C78, C293 | AASHTO T97
BS 1881:118
Equipped with two lower rollers, one of them articulated, and two
upper rollers for third point tests.
– Two fix distances between lower rollers: 300 and 450 mm
– Two fix distances between upper rollers: 100 and 150 mm
It is possible to place in the centre only one upper roller for centre
point tests.
To perform the flexural test, this device has to be used with a
concrete compression machine foreseen of low capacity measuring
range (mod. C097-01, C097-02) see p. 313
Dimension: 610x200x320 mm
Weight: 27 kg approx.

E170
COMPRESSION DEVICE TO TEST MORTAR
PRISMS 40.1X40X160 MM BROKEN IN FLEXURE
STANDARDS: EN 196-1 | ASTM C349
To be used with a concrete compression machine foreseen of low
capacity measuring range (mod. C097-01, C097-02) or with a
flexural frame.
Dimensions: Ø 153xh182 mm.
Weight: 12 kg approx.

E171
COMPRESSION DEVICE TO TEST MORTAR CUBE
SPECIMENS 50 MM (2”)
STANDARD: ASTM C109
It is possible to test also cylindrical specimens Ø 50xh50 mm.
To be used with a concrete compression machine foreseen of low
capacity measuring range (mod. C097-01, C097-02) or with a
flexural frame.
Weight: 12 kg approx.

E171-01
COMPRESSION DEVICE TO TEST MORTAR CUBE
SPECIMENS 70.7 MM
STANDARD: BS 4550
It is possible to test also cylindrical specimens Ø 70×70 mm.
To be used with a concrete compression machine foreseen of low
capacity measuring range (mod. C097-01, C097-02) or with a
flexural frame.
Weight: 12 kg approx.

C091-13
CONCRETE KERBS AND SLABS DEVICE
FLEXURAL STRENGTH MEASUREMENTS
STANDARD: EN 1340
The equipment consists of a steel tamper mounted on a rotating
coupling which is fixed to the upper part of the flexural testing
machine (to be selected from serie mod. C090-06, C091, C093
and C095N) to apply a flexural strength on three points on the
concrete kerb, without any torsional stress.
