ACCESSORIES AND SPARES TO COMPRESSION TESTING MACHINES

Category:

SAFETY GUARDS

Compliant with CE Safety Directive, manufactured of highly resistant
transparent polycarbonate material and complete with hinges and
lock. The guards are both on front and back sides.

MODELS
C121 For machines 1300kN and 1500kN
C121-05 For machines 2000kN (mod C051 to C058-05N)
C121-01 For machines with block platens 2000kN (C073 to C078N)
C121-06 For machines high stability 2000kN (C089 to C089-04N)
C121-10 For machines high stability with block platens 2000kN
capacity (mod C089B to C089-22N)
C121-07 For machines 3000kN (mod C066 to C071N) and high
stability 3000kN (mod C089-06 to C089-10N)
C121-08 For machines with block platens 3000kN (mod C079-01 to
C079-06N) and high stability with block platens 3000kN
(C089-15 to C089-19N)
C121-04 For machines 5000kN (mod C086-02 to C086-03N)
C126
BENCH
Used to hold the compression (or flexural) testing frame, to set the
machine at a proper height for its utilization.
Alternative solution to a concrete holding base.
Made from heavy welded steel, it can be moved in the laboratory
both from front or lateral side by a forklift.
When ordering, please specify the model of testing machine the
bench is to be designed.
Weight: 55 kg approx.

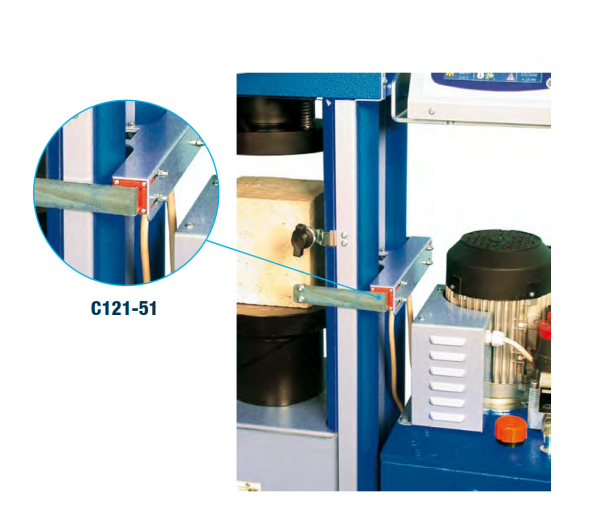

C121-51
DOOR STOP SAFETY SWITCH
This door locking electric switch if fixed on the front door of the
compression machine as safety device. It cuts off mains and stops
the machine when the door is open.
This locking switch can be installed only on digital compression
machines equipped with safety guards with hinges and lock.

GAUGE
Diameter 250 mm foreseen for max. load pointer, zero adjustment
and mirror face. Spare part for compression and flexure machines.
Supplied pre-calibrated.

ACCESSORIES AND SPARES TO COMPRESSION AND FLEXURAL TESTING MACHINES

C113
PUMPING UNIT, HAND OPERATED
Complete with tank, accessories and connectors.
Spare part for compression and flexure machines.
Weight: 20 kg approx.
C114
PUMPING UNIT, MOTORIZED
Complete with tank, speed selector, hydraulic cock, accessories and
connectors.
Spare part for compression and flexure machines.
Hydraulic pressure: 0…700 Bar
Oil supply from 0.05 to 0.7 litre/min.
Supplied without hydraulic oil to be ordered separately
(see mod. C114-10N).
Power supply: 230V 1ph 50 Hz 750 W
Weight: 40 kg approx.
C114-01
PUMPING UNIT, MOTORIZED
Identical to mod. C114, but equipped also of a two way hydraulic
valve (C115-01) to activate, alternatively, two testing frames.
Supplied complete.
C114-10N
HYDRAULIC OIL
For compression/flexural testing machines.
Can of 20 litres.

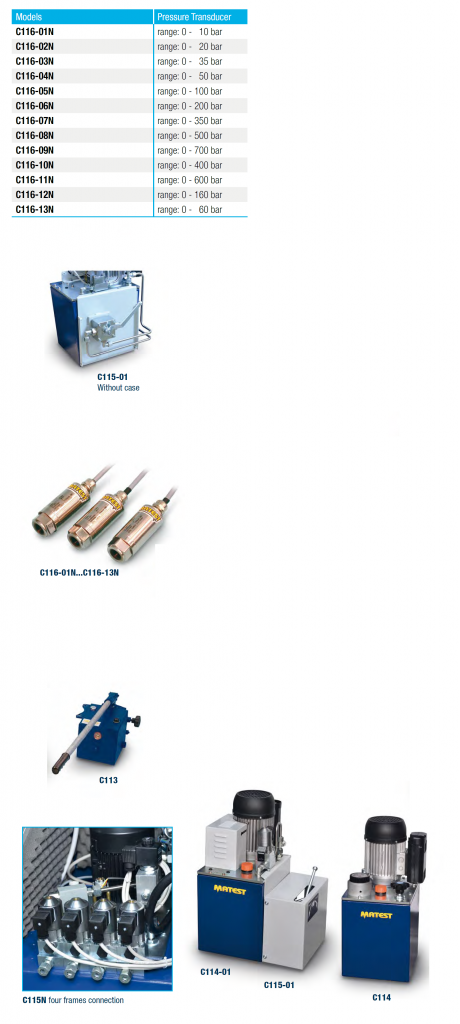

C115-01
TWO-WAY HYDRAULIC VALVE
Installed on the pumping unit mod. C114, to activate alternatively
two testing frames by using the same pumping unit.
Complete with protection case.

C115N
AUTOMATIC HYDRAULIC VALVE
Installed on the pumping unit of the Servo-Plus
machines to automatically activate alternatively
two testing frames. Upon request, it is possible to
connect up to four different frames. Our technical
dept. is at your disposal for any specific demand.

PRESSURE TRANSDUCER
Used in conjunction with digital units Cyber-Plus C109N, Servo-Plus
C104N, Digitec C108N, Autotec C098N.
Supplied complete with cable, calibration certificate.
Nominal sensitivity: 2 mV/V. Accuracy: ± 0.5%

PACKING SET
Comprising three elements, for piston/cylinder coupling
MODELS
C122 For compression machine 1200 kN capacity
C122-01 For compression machines 1300-1500 kN capacity
C122-02 For compression machine 2000 kN capacity
C122-03 For compression machine 3000 kN capacity
C122-04 For flexure machine 150 kN capacity, C090 serie
C122-06 For flexure machine 150kN capacity, C091, C093 serie
C122-07 For flexure machine 200 kN capacity, C090-06 and
C090-07 serie
C122-05 Packing set for the hand-operated pump of testing
machines
E161-15 For Cement testing machines mod. E151 to E161
E183-11 For Cement machines mod. E181, E183, piston 250kN
E183-12 For Cement machines mod. E181, E183, piston 15kN

C110-15
LOWER COMPRESSION PLATEN
Hardened and rectified, Ø 216×40 mm, complrte with distance piece
20 mm high to test cubes 100, 150 mm and cylinders up to
Ø 160×320 mm
Weight: kg 11.3 + kg 3
This simple and low cost solution is recommended for an easier
use of the High Stability Compression Testing Machines and the
compression machines equipped with lower platen Ø 287 mm to
test cube specimens 100 and 150 mm side and cylinders up to Ø
160×320 mm
It consists of replacing the heavy lower compression platen having
Ø 287 mm by 60 mm height (weight 30.3 kg) with a smaller platen
having only Ø 216 mm by 40 mm height (weight 11.3 kg), together
with the suitable 20 mm high distance piece.
This test solution allows a much easier removal and positioning of
the lower compression platen when the distance pieces have to be
fitted in and out, based on the specimen size the user needs to test
(cube 100 or 150 mm or cylinder 150×300 mm or 160×320 mm
diameter).
This solution is not valid only when a cube specimen 200 mm side
has to be tested. In this case the lower compression platen 287 mm
diameter must be foreseen to cover the full surface of the 200 mm
cube specimen.

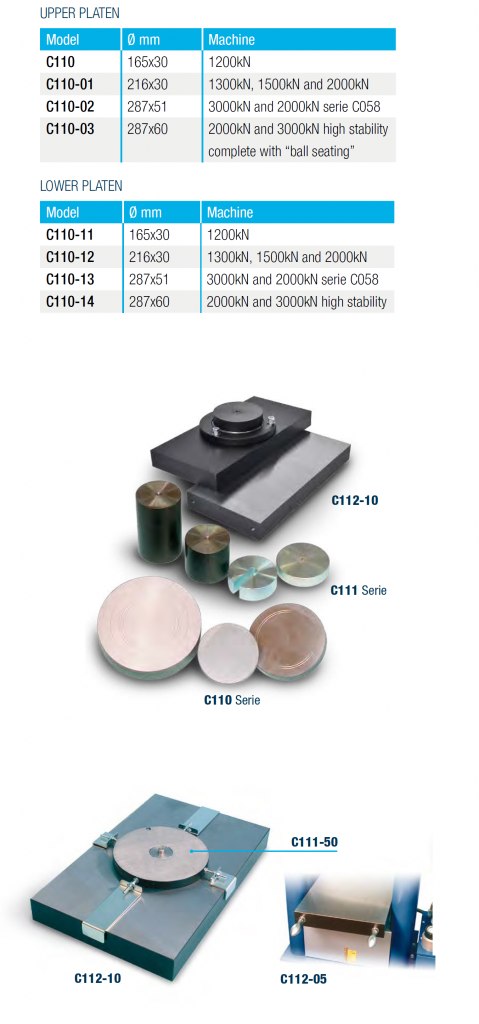

COMPRESSION PLATENS
Surface hardened over 55 HRC and finish-grinding.

C112-10
UPPER and LOWER COMPRESSION PLATENS, complete with “ball
seating”, dimensions 510x245x55 mm for tests on blocks.
C112-11
UPPER and LOWER COMPRESSION PLATENS, complete with “ball
seating”, dimensions 510x320x55 mm for tests on blocks.
C112-05
Kit of 4 handles to lift the lower platen, making the positioning of
distance pieces easier.
AS AN ALTERNATIVE
C111-50
DISTANCE PIECE
To be used with compression testers equipped with rectangular
platens 510×320 mm to test blocks.
This device eliminates the heavy procedure to lift the lower rectangular
platen and to add distance pieces to perform compression
tests also on cube specimens.
This distance pieces is fixed over the lower rectangular platen
through 4 adjustable couplers allowing a quick, correct and stable
fixing.
On the distance piece it is now possible to put the round compression
platen Ø 216 or 287 mm foreseen by the specific machine.
This distance piece is finish-grinded (suitable also for high stability
testers), has Ø 210 mm, height 20 mm.
Weight: 3 kg approx.

DISTANCE PIECES
Used to reduce the vertical clearance between the compression
platens, according to the height of the specimen to be tested, so
to avoid the ram to make its max. excursion (approx. 50-55 mm)
without having compressed the specimen.
The distance pieces are placed between the ram and the lower
compression platen.

MODELS
DISTANCE PIECES Ø 140 mm for machines: 1200kN, 1300kN,
1500kN, 2000kN (C051 to C056N)
C111-30 High 20 mm C111-21 High 50 mm
C111-03 High 100 mm C111 High 176 mm
C111-02 High 226 mm
DISTANCE PIECES Ø 200 mm for machines: 2000kN (C058 to
C058-05N), 3000kN (C066 to C071N), 2000kN blocks (C073 to
C078N), 3000kN blocks (C079-01 to C079-06N)
C111-31 High 20 mm C111-22 High 50 mm
C111-26 High 76 mm C111-04 High 126 mm
SLOTTED DISTANCE PIECES Ø 150 mm for central screw machines:
2000kN (C073 to C078N), 3000kN (C079-01 to C079-06N)
C111-27 High 20 mm C111-23 High 50 mm
C111-28 High 76 mm C111-08 High 126 mm
DISTANCE PIECES Ø 210 mm, finish-grinding, for high stability
machines: 2000kN, 3000kN, 2000kN blocks and 3000kN blocks.
C111-32 High 20 mm C111-24 High 50 mm
C111-25 High 73 mm
C111-16 DISTANCE PIECE, high 50 mm for flexure machines serie
C090
C111-17 DISTANCE PIECE, high 40 mm for flexure machines serie
C090-07N
