ABRASION RESISTANCE OF NATURAL STONES AND
CONCRETE TILES FOR PAVING
STANDARDS: EN 1338, 1339, 1340, 1341, 1342, 1343 | EN 14157
CEN ISO-TC 178 | UNI 10532 | BS 6717:2001
Used to determine the resistance to abrasion and wear of concrete
products and natural stones, by measuring the length of a groove
produced on the specimen surface through a disc with thickness
of 70 mm that rotates at controlled speed and makes a constant
pressure on the specimen. A charge of abrasive material must be
interposed between the disc and the specimen. The instrument is
supplied with an electronic speed controller and shutting off device
after the set number of revolutions, 1 kg of abrasive material, a
calibration plate comparable to boulonnaise marble, accessories
and cabinet conforming to CE Safety Directive.
Power supply: 230V 50-60Hz 1ph 500W
Dimensions: 450x420x800 mm
Weight: 85 kg approx.

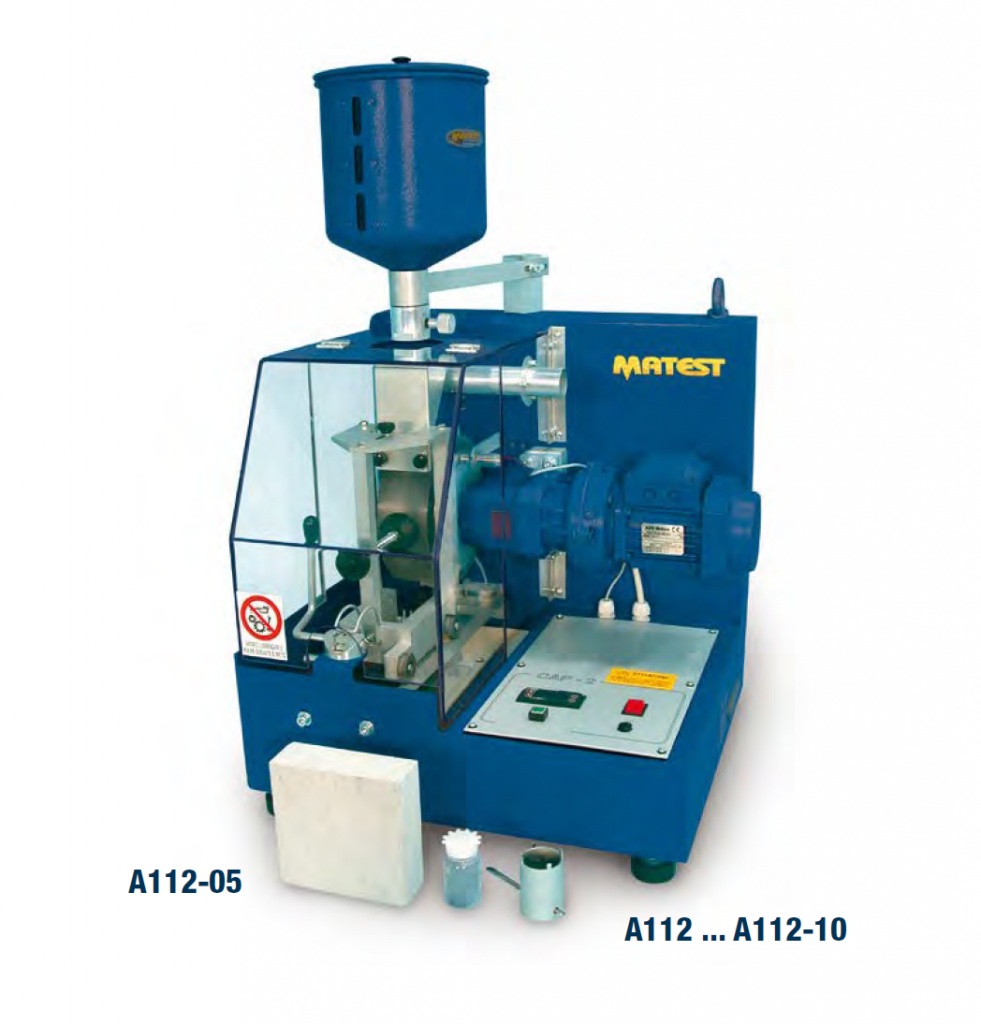

ABRASION TESTER FOR BRICKS AND TILES
STANDARDS: EN 102 | EN 12808-2 | EN 1344, 10545-6, 14617-4
CEN ISO-TC 178 | ISO 10545-6 | UNE 127024
Same as mod. A112 but with disc thickness of 10 mm.
Suitable for bricks and ceramic glazed tiles.
Used to convert the abrasion tester mod. A112 into mod. A112-10.
It comprises abrasion disc Ø 200 mm x 10 mm thick, counter
weight and hopper.
A112-01 Abrasive white corundum sand 80 grade. Pack of 5 kg.
A112-05 Calibration plate comparable to boulonnaise marble.
