CLIMATIC CABINETS

Categories: ,

The climatic cabinet is available in two versions:
C313N Temperature and humidity controlled from -30 to +70 °C
and 20% to 95% respectively for testing concrete
(EN 12390-2), cement (EN 196-1), aggregates
(EN 1367-1) and many other applications.
C316N Only temperature controlled from -30 to +70 °C for the
determinations of the behavior and resultance to freezing
and thawing of aggregates (EN 1367-1) and different
other applications on concrete and building materials.

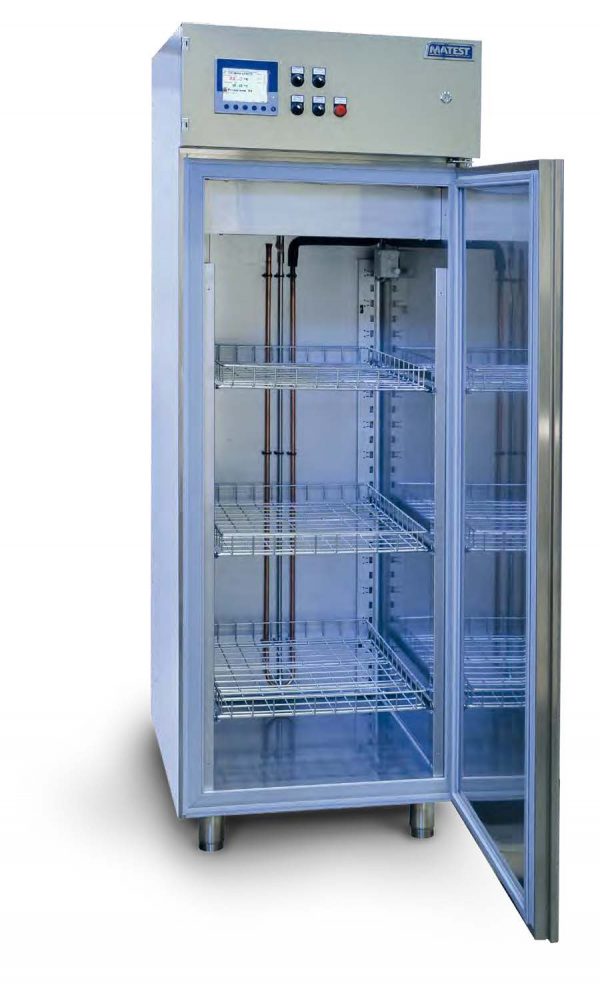

C313N
TEMPERATURE AND HUMIDITY CONTROLLED
CABINET 535 LITRES CAPACITY
STANDARDS: EN 196-1, EN 1367-1, EN 12390-2, EN 12390-9
Designed for all research and control laboratories to perform: cold
and/or hot temperature measurement at controlled humidity conditions,
any kind of freezing/thawing tests and accelerated curing
tests. Used to cure concrete (EN 12390-2) and cement specimens
(EN 196-1) and analyze the behavior to freezing and thawing of
aggregates (EN 1367-1) and concrete (EN 12390-9).
Internal and external frame is made of stainless steel AISI 304.
Polyurethane insulation: 60 mm thick.
Internal ventilation.
Door with 180° opening angle, equipped magnetic gasket and
integrated heater against freezing.
Shelves can be taken off and adjustable in height; adjustable feet.
Temperature and humidity sensors wall mounted inside cabinet

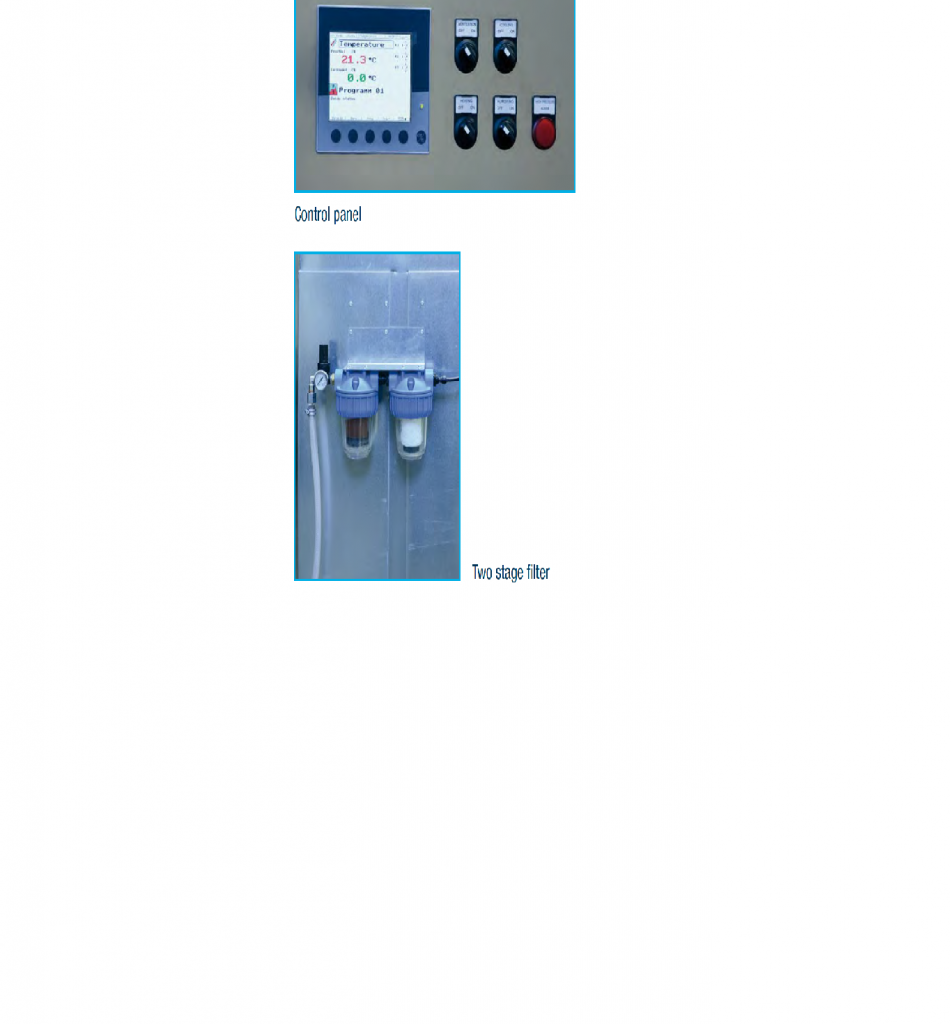

The cabinet is supplied with a two stage filter; mechanic and mixed
ionic/cationic resins. It works with demineralized, softened waters,
or tap water with hardness rate up to 300 ptm assuring an excellent
functioning along the time.
Equipped with microprocessor temperature/humidity controller with
integrated cycles multiple segments programmer.
panel mount 144×130mm format
5″ color graphic display
50 programs with 100 segments and real time clock
Logging function with PC interface (optional)
Visual alarm for minimum and maximum temperature
Supplied complete with 3 adjustable shelves suitable to withstand
weights up to 40 kg
Inside dimensions: 590x670x1360 mm
Overall dimensions: 710x820x2080 mm
Power supply: 230V 1ph 50-60Hz 2570W
Weight: 170 kg approx.

C313-01N
TEMPERATURE AND HUMIDITY CONTROLLED
CABINET 1200 LITRES CAPACITY
Same as C313N model, but with an internal capacity of 1200 liters.
Internal ventilation.
Door with 180° opening angle, equipped magnetic gasket and
integrated heater against freezing.
Shelves can be taken off and adjustable in height; adjustable feet.
Temperature and humidity sensors wall mounted inside cabinet
Visual alarm for minimum and maximum temperature
Supplied complete with 6 adjustable shelves suitable to suitable to
withstand weights up to 40kg.
Inside dimensions: 1300x670x1360 mm
Overall dimensions: 1500x820x2080 mm
Power supply: 230V 1ph 50-60Hz 2900W
Weight: 230 kg approx.

C313N + C313-05N

C316N
TEMPERATURE CONTROLLED CABINET
535 LITRES CAPACITY
STANDARDS: EN 1367-1
Technical specifications:
Same as mod. C313N, except for the humidity control that is not
included.
ACCESSORIES
C313-11N ADDITIONAL BASKET SHELVE : Made of Stainless Steel
grid, suitable for loads up to 40 Kg.
C313-12N MOBILE TEMPERATURE PROBE: Type PT100 in stainless
steel bulb for free positioning in the chamber and
on the specimen.
C313-13N LOGGING FUNCTION: Logging upgrade function for
on-board Jumo controller with enabling of “real time
trend” and “Historical trend” of variables and predisposition
of PC interface.
C313-15N PC INTERFACE: Consist of Cables, PC interface converter
and Jumo software for editing
and real-time view.

ADHESIVES FOR TILES
DETERMINATION OF TENSILE ADHESION
STRENGTH FOR CEMENTITIOUS ADHESIVES
STANDARDS: EN 1348 | EN 12004
C313-05N
INTERNAL FLOODING SYSTEM
Applicable only to temperature and humidity
controlled cabinets C313N, C313-01N.
Used for the determination of tensile adhesion strength
for cementitious adhesives.
It is composed of two stainless steel vessels and a discharging
system for the water.
The system allows to empty and fill the inner vessel with water
without opening the climatic cabinet.
Inner vessel water level is limited by a sensor.
Filling and drainage of water are regulated by a valve positioned on
the bottom of both vessels.
Inner vessel volume is 150 l, while outer vessel volume is 170 l.
Water temperature range is from 10 °C to 40 °C, demineralized
water must be used.
Temperature stability: ± 2 °C
Water pressure range is from 0.2 to 5 bar.
Flooding system can be installed also in C313 already supplied if
returned in Matest factory.
System must work with no
organic compounds.
Outer vessel dimensions:
816x588x600 mm
Weight: 50 kg approx.
