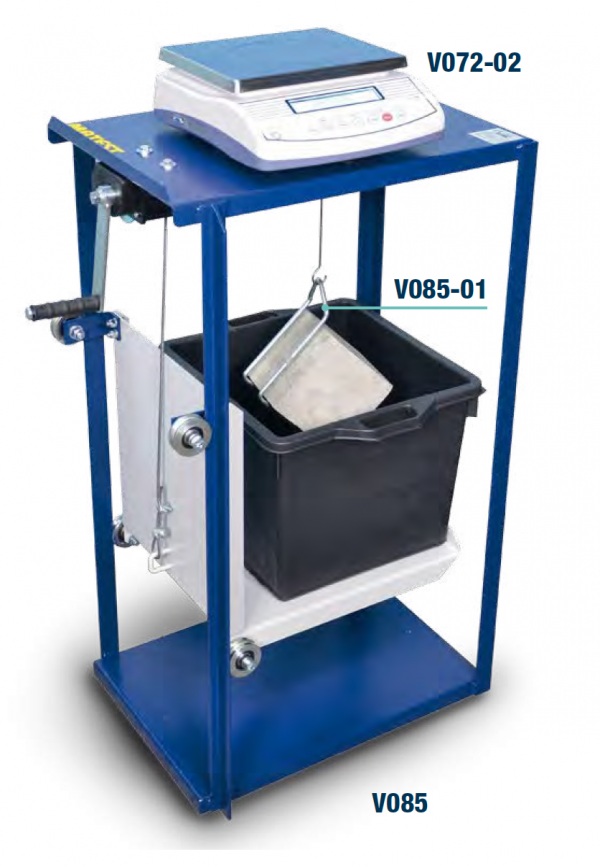

SPECIFIC GRAVITY FRAMES V085-V086 (BOUYANCY BALANCE SYSTEM)

Category:

STANDARDS: EN 12697, EN 1097-6 | EN 12390:7
ASTM C127, C128 | AASHTO T84 | BS 812:2, 1881:114
Used for specific gravity determination of concrete, aggregates etc.
To be used with a suitable electronic balance fitted with an under –
hook facility.
Robust steel frame made, it incorporates on its lower part a platform
adjustable in height, holding a water container, and allowing
the specific gravity test. The balance is not included and must be
ordered separately.
Dimensions: 510x510x1150 mm
Weight: 50 kg approx.

ACCESSORIES
V085-01 CRADDLE for holding concrete cube and cylinder specimens
V041 DENSITY BASKET, stainless steel, Ø 200×200 mm, mesh
3.35 mm

V086 KIT
SPECIFIC GRAVITY KIT
Used for specific gravity determination of solid materials.
Simplified and economical solution.
The kit is composed of:
V086 Support bridge frame with hook rod.
V042 Density tank, plastic, 370x370x330 mm
V041 Density basket, stainless steel, Ø 200×200 mm,
mesh size 3.35 mm
To be used with a suitable electronic balance fitted with under-hook
facility.

ACCESSORY
V085-01 CRADDLE for holding concrete cube and cylinder specimens.
