STANDARDS: EN 933-3 | ASTM C136, 702 | NF P18-553
UNI 8520 | AASHTO T27, T87
BS 812:1, 1377:2, 1924:1 | UNE 83120

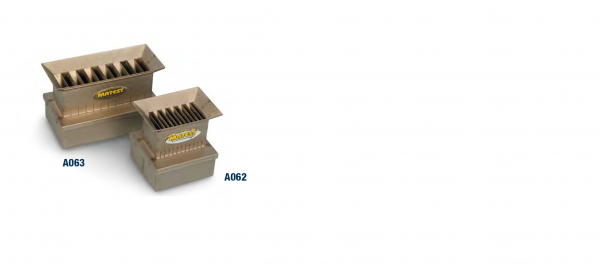

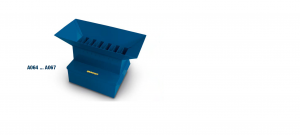

Used for splitting materials such as aggregates, sand, gravel and
similar into two representative portions. Painted or stainless steel
made, they are supplied with two collecting pans.
LARGE CAPACITY SAMPLE SPLITTER
STANDARDS: EN 933-3 | ASTM C136 | NF P18-553 | UNI 8520
AASHTO T27, T87 | BS 812:1, 1377:2, 1924:1

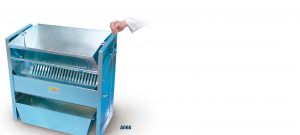

Designed for the reduction of test samples which are too large in
volume to be conveniently handled. Suitable for any material from
sand sizes up to Ø 108 mm. Each chute bar is 12 mm wide to
get openings of 12 – 24 – 36 – 48 – 60 – 72 – 84 – 96 – 108 mm.
Complete with two collecting pans.
Clam shell hopper: 30 litres capacity.
Very sturdily constructed, it is totally galvanized for rust protection.
Weight: 55 kg approx.

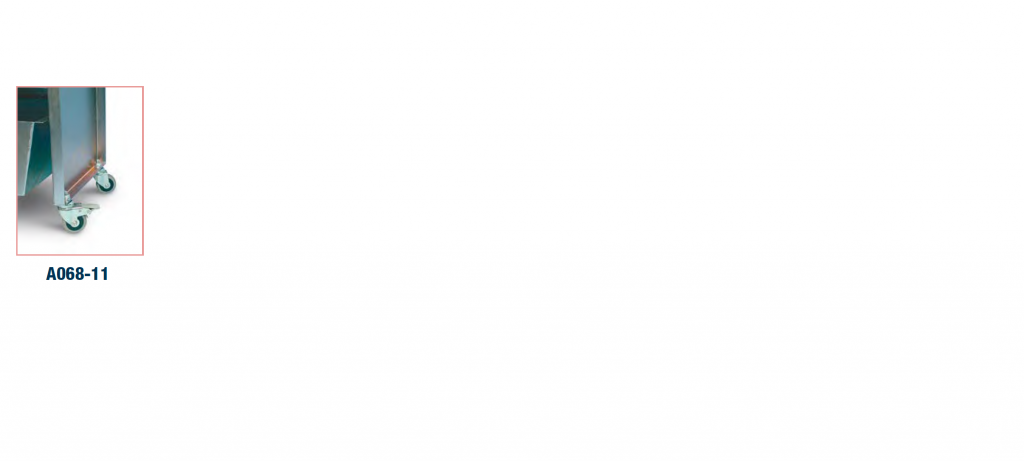

A068-11 WHEELS (Kit of 4) with brake for
an easy displacement of the
large splitter in the laboratory.
A068-01 Collecting pan for mod. A068
