STANDARDS: EN 12390-7 | EN 1097-6 | UNI 6394-2 | BS 812, 1881:14 | ASTM C127, C128 | AASHTO T84 | DIN 12039 | NLT 154
To perform this test, additional general purpose equipment are
required, such as: oven, sieves, balances etc., and the following
specific apparatus:

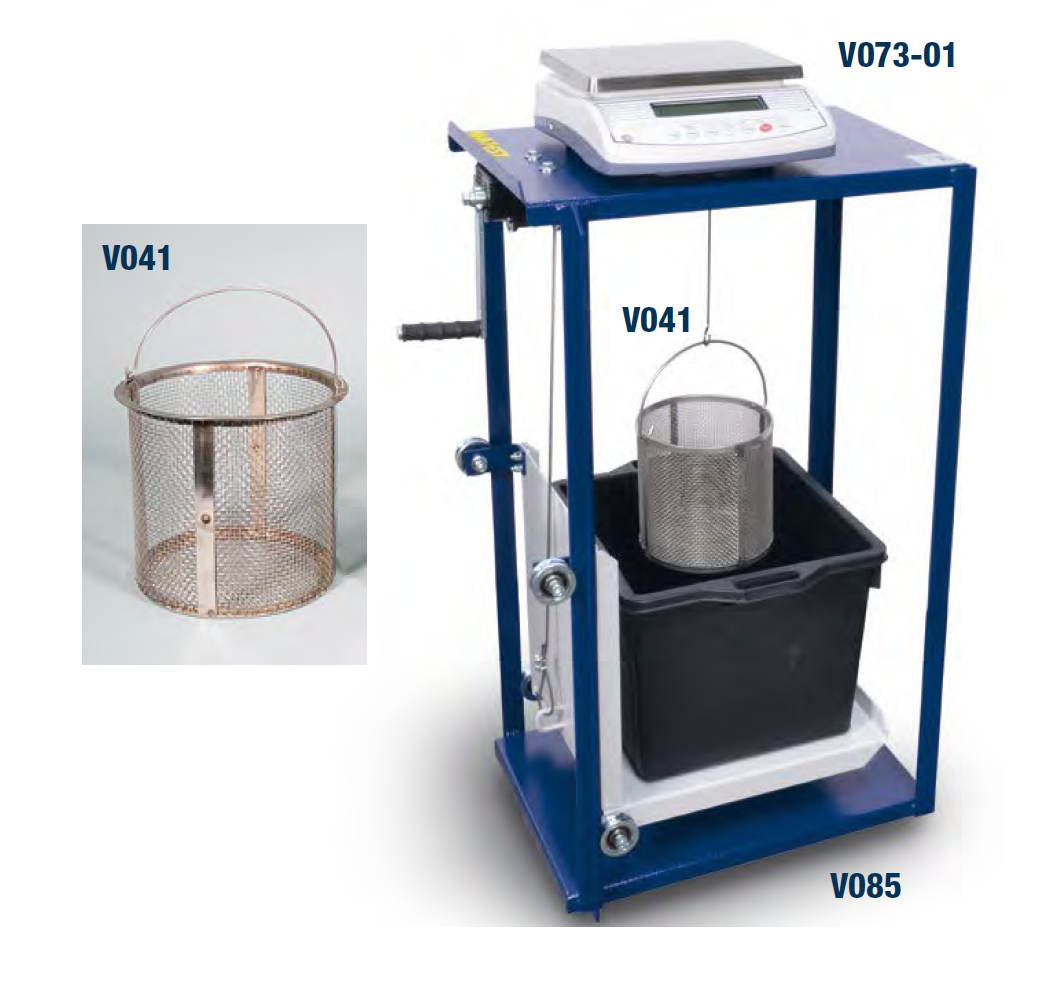

V041
DENSITY BASKET, Ø 200 mm by 200 mm high, mesh size
3.35 mm, all stainless steel made.
Other models of density baskets listed at p. 582
V085
SPECIFIC GRAVITY FRAME
Technical data: see Section “V” p. 582
PYKNOMETER,
pyrex glass, complete with stopper, capillary tube and funnel; used
to determine the voids and bulk density of aggregates.
V103 Capacity 500 ml
V103-01 Capacity 1000 ml
PYKNOMETER,
pyrex glass, wide mouth Ø 50 mm, complete with capillary tube stopper,
used to evaluate the volume density and voids of aggregates.
V105-04 Capacity 500 ml
V105-05 Capacity 1000 ml
V105-06 Capacity 2000 ml
S148
SAND ABSORPTION CONE AND TAMPER, used in
determining the specific gravity and absorption of fine aggregates.
DETERMINATION OF THE PARTICLE DENSITY OF
FILLER. PYKNOMETER METHOD
STANDARDS: EN 1097-7 | NF P18-558 | BS 812
To perform this test additional general purpose equipment are
required such as: oven, sieves, balance etc., and the following
specific apparatus:
SPECIFIC GRAVITY BOTTLE, GAY LUSSAC TYPE,
pyrex glass, complete with capillary tube stopper, to determine the
particle density and specific gravity of filler in fine aggregates.
V108-01 Capacity 50 ml
V108-02 Capacity 100 ml
V108-03 Capacity 250 ml

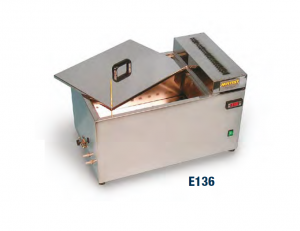

E136
WATER BATH
Heating/circulating system, all stainless steel made. Equipped with
cooling coil device for connection to water net.
Capacity: 40 litres. Digital thermostat
Temperature range: ambient to 60 °C.
Accuracy: ± 0.5 °C.
Inside dimensions:
510x350x230 mm
Overall dimensions:
680x420x420 mm
Power supply:
230V 50-60Hz 1ph 2000W
Weight: 28 kg approx.
