DEFLECTOMETERS – SWING-ARM MODEL

Category:

Used to determine the deflection on bridges, ceilings or any suspended
structure. Possibility to use the deflectometer in pressure or
traction, and direct reading on the dial gauge.
Available in one or three sets, to be completed with dial gauges
stroke from 10 to 50 mm.
One deflectometer set comprises:
Swing-arm with clamp for complete orientation in any position,
inextensible wire coil 20 metres long, plumb weight, carrying case.
Supplied without dial gauge to be ordered separately (see accessories).

MODELS

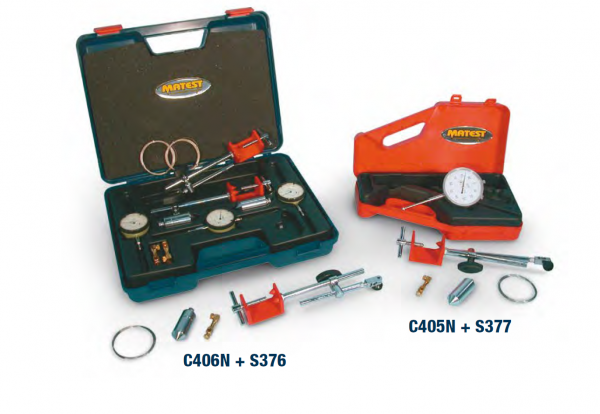

C405N N° 1 SET OF DEFLECTOMETER (without dial gauge)
C406N N° 3 SETS OF DEFLECTOMETERS (without dial gauges)
ACCESSORIES
S376 DIAL GAUGE 10 mm stroke x 0.01 mm sens.
S377 DIAL GAUGE 25 mm stroke x 0.01 mm sens.
S378 DIAL GAUGE 30 mm stroke x 0.01 mm sens.
S379 DIAL GAUGE 50 mm stroke x 0.01 mm sens.
S383 DIGITAL GAUGE 25.4 mm x 0.001 mm sens.

ACCESSORY for S383
S382-13 CABLE to connect S382-01 and S383 to PC through
USB port for direct visualization and recording of the
measurement.

SPARE
C407-02 Inextensible wire coil, 20 metres long
