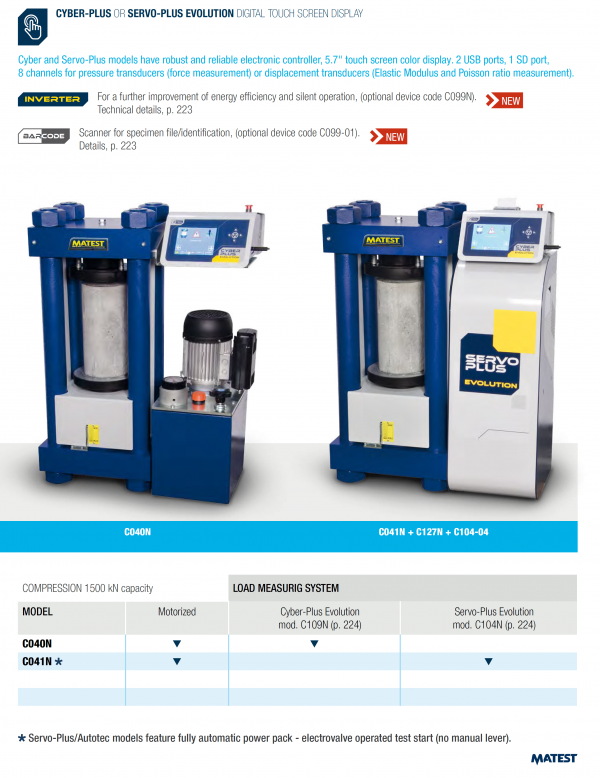

COMPRESSION TESTING MACHINE HIGH-END MODELS TO TEST CUBES UP TO 150 MM SIDE AND CYLINDERS UP TO Ø 160X320 MM

Category:

STANDARDS: ASTM C39 | AASHTO T22 | NF P18-411 | BS 1610 | GOST 10180-2012          1500 KN CAPACITY

ACCESSORIES FOR 1500 kN MACHINES FROM MOD. C036 TO C041N
C111-30 DISTANCE PIECE, 20 mm high for cylinders
Ø 150×300 mm
C111 DISTANCE PIECE, 176 high for cubes 150 mm side
C111-01 DISTANCE PIECES, 176+50 mm high for cubes 150 and
100 mm side
C111-03 DISTANCE PIECE, 100 high for cylinders Ø 110×220 mm
C111-03 + C111-30 DISTANCE PIECES, 100 + 20 mm high for
cylinders Ø 100×200 mm
C111-21 DISTANCE PIECE, 50 mm high
Note: the cylinders Ø 160×320 mm do not require any distance
piece.
C127N GRAPHIC PRINTER on thermo-paper on board for digital
models
C127-11 THERMO-PAPER roll for printer (pack of 10 rolls)
C121 SAFETY GUARDS, polycarbonate, with hinges and lock,
to CE Directive. p. 317
C121-51 STOP SWITCH on safety guard. See p. 317
C041-11 TESTING CHAMBER with vertical clearance of 376 mm,
complete with distance piece 40 mm high, that allows
to test cylinders Ø 150×300 mm and 160×320 mm with
capping retainers (ASTM C1231 | AASHTO T22, T851)
C107-10 CAPPING RETAINERS (set of two) for cylinders
Ø 150 mm and 6”
C107-12 CAPPING RETAINERS (set of two) for cylinders Ø 160 mm
C107-20 NEOPRENE PADS (set of two) for cylinders
Ø 150 mm 60 shore A
C107-21 NEOPRENE PADS (set of two) for cylinders Ø 150 mm
70 shore A

C107-25 NEOPRENE PADS (set of two) for cylinders Ø 160mm
60 shore A
C107-26 NEOPRENE PADS (set of two) for cylinders Ø 160 mm
70 shore A
Note: The capping retainers can be used only with the testing
chamber having vertical clearance of 376 mm, mod. C041-11
Technical details: see p. 316

C115-01 TWO WAY HYDRAULIC VALVE, connected to the motorized
pumping unit of the machine to activate a second
frame. Technical details: see p. 318
C097-05 CALIBRATION CLASS 1, starting from 1% of the full
range. With a special calibration procedure it is possible
to grant Class 1 practically on the full range of the compression
machine. Applicable only on digital machines.
C097-01 DUAL LOW CAPACITY DIGITAL RANGE, complete with
appropriate pressure transducer, only for digital
machines. Recommended range 0-250kN.
Technical details: see p. 313

C107 AUTO-CENTERING DEVICE for cubes 100 and 150 mm
side, and cylinders Ø 100 and 150 mm.
Technical details: see p. 316

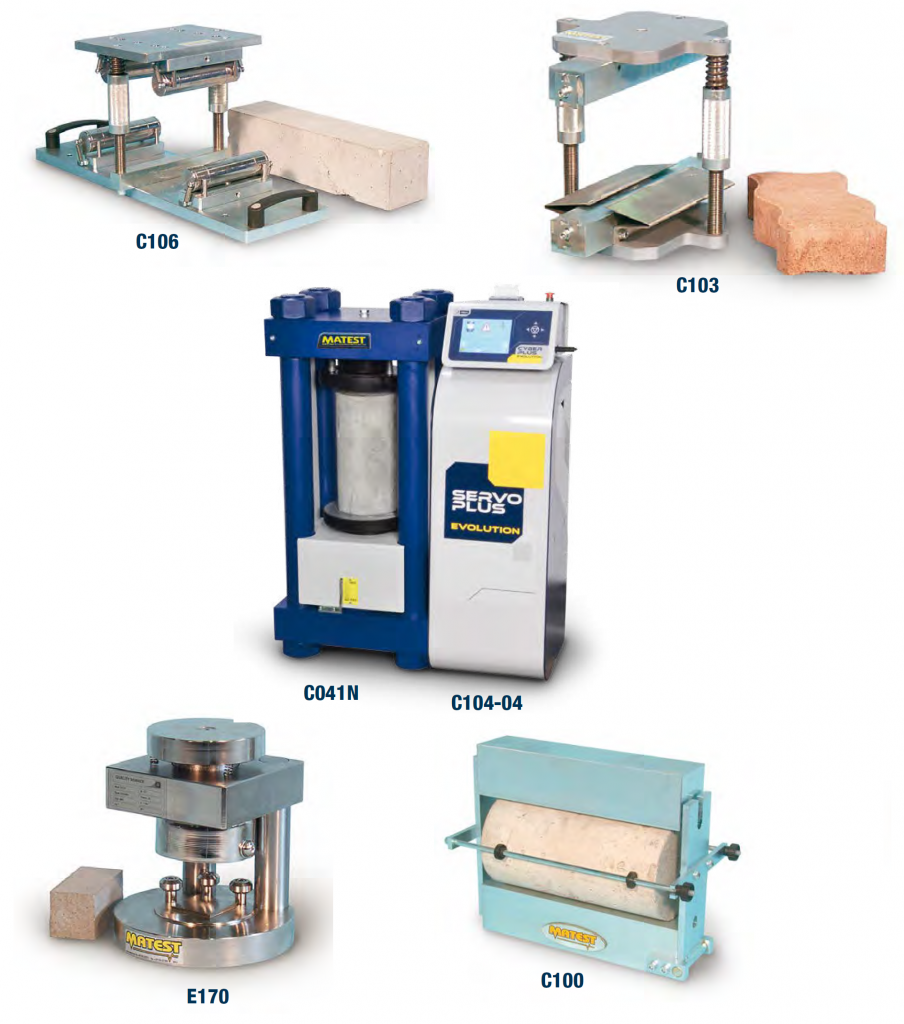

C100 SPLITTING TENSILE test device for cylinders.
EN 12390-6 | ASTM C496
Technical details and other models: see p. 314
C100
C103 SPLITTING TENSILE test device for self blocking pavers
and cubes. EN 1338, 12390-6.
Technical details: see p. 314
C106 FLEXURAL TEST DEVICE for concrete beams.
EN 12390-5 | ASTM C78, C293 | AASHTO T97
Technical details: see p. 315
E170 COMPRESSION DEVICE to test cement specimens
40.1×40 mm EN 196 | ASTM C349
Technical details and other models: see p. 315
C126 BENCH to hold the compression machine. See p. 317

C104-04 CONSOLE HOUSING THE SERVO-PLUS EVOLUTION
The pump assembly lined with sound proofing material
for noise reduction and the digital system are encased to
enhance the design and look of the machine.
Technical details: see p. 312
