STANDARDS: BS 1610 | NF P18-411 | ASTM C39 | AASHTO T22 | GOST 10180-2012 5000 KN CAPACITY

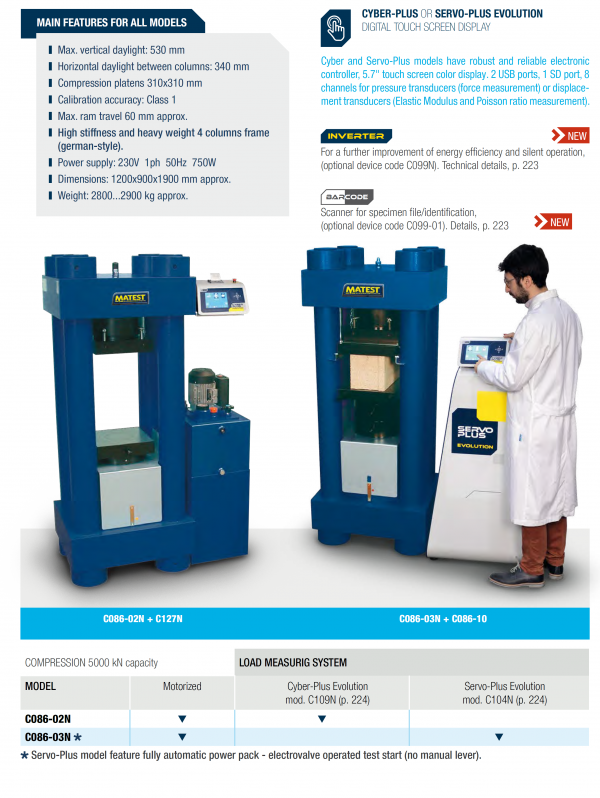

MAIN FEATURES FOR ALL MODELS
Max. vertical daylight: 530 mm
Horizontal daylight between columns: 340 mm
Compression platens 310×310 mm
Calibration accuracy: Class 1
Max. ram travel 60 mm approx.
High stiffness and heavy weight 4 columns frame
Power supply: 230V 1ph 50Hz 750W
Dimensions: 1200x900x1900 mm approx.
Weight: 2800…2900 kg approx.

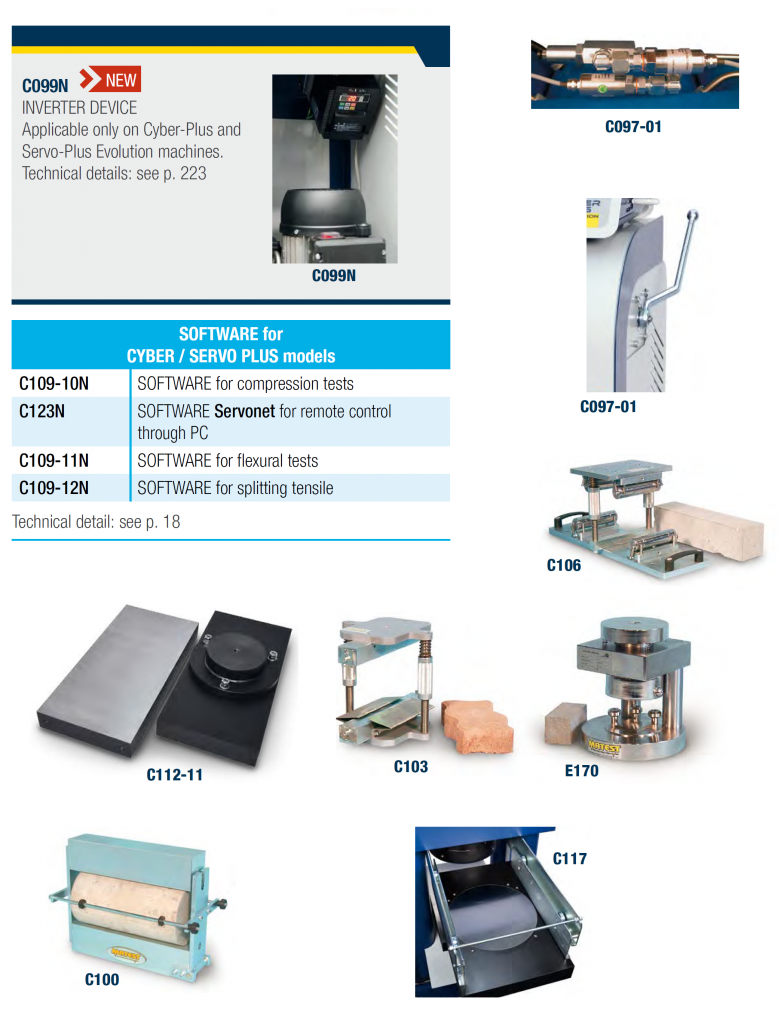

ACCESSORIES FOR 5000 kN MACHINES
C086-10 DISTANCE PIECE, 50 mm high
C086-11 DISTANCE PIECE, 25 mm high
Note: Vertical daylight of the compression platens is 530 mm.
The operator will have to buy the needed distance pieces
to reduce the daylight between the compression platens
to get the correct daylight of the specimen under test
plus approx. 10 to 15 mm
C112-11 UPPER+LOWER LARGE COMPRESSION PLATENS+SEAT
BALL 310x510x55 mm to test also blocks. It is necessary
to have also the sliding rail carriage mod. C117
C117 SLIDING RAIL CARRIAGE,
for an easy removal of the
large block upper platen
C127N GRAPHIC PRINTER on thermo-paper on board
C127-11 THERMO-PAPER roll for printer (pack of 10 rolls)
C121-04 SAFETY GUARDS, polycarbonate, with hinges and lock,
to CE Directive. See p. 317
C121-51 STOP SWITCH on safety guard. See p. 317
C115-01 TWO WAY HYDRAULIC VALVE,
connected to the motorized pumping
unit of the machine to activate a
Technical details: see p. 318
SPLITTING TENSILE test device for
cylinders.EN 12390-6 | ASTM C496
Technical details and other
models: see p. 314
SPLITTING TENSILE test device for self
blocking pavers and cubes.
EN 1338, 12390-6.
Technical details: see p. 314
FLEXURAL TEST DEVICE for concrete beams.
EN 12390-5 | ASTM C78, C293 | AASHTO T97
Technical details: see p. 315
COMPRESSION DEVICE to test cement specimens
40.1×40 mm EN 196 | ASTM C349
Technical details and other models:
see p. 317
Technical detail: see p. 18
C097-05 CLASS 1, starting from 1% of the full range. With a special
calibration procedure it is possible to grant Class 1
practically on the full range of the compression machine.
COMPRESSION AND FLEXURAL FRAMES ONLY
The compression frame is supplied complete with upper compression platen + spherical seat and lower compression platen, pressure transducer
and and flexible connection pipe to separate control console.
The two-way hydraulic valve mod. C115-01 (see p. 318), the distance pieces and the safety guards are not included and must be ordered separately.
