C376N PULLOUT TEST APPARATUS

Category:

STANDARDS: EN 12504-3 | UNI 10157, UNI 9536, comparable to ASTM C900
Used to evaluate the concrete resistance as per the strength applied
to extract a disc embedded into concrete.

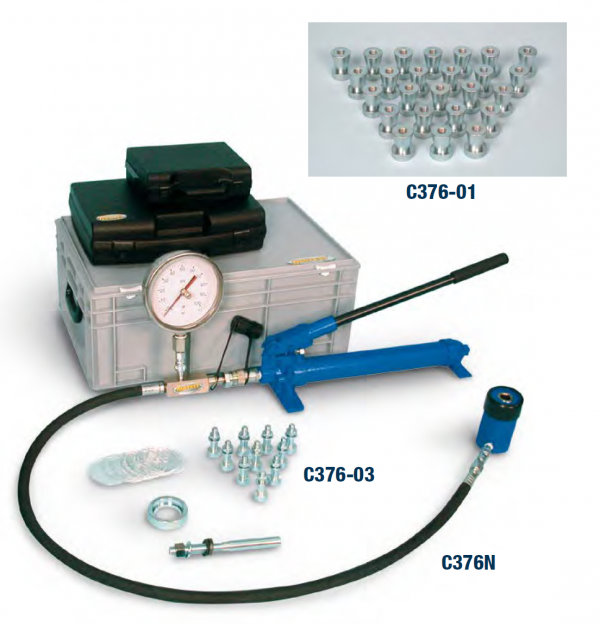

The standard equipment comprises hydraulic extraction unit 100 kN
capacity with pump, precision manometer 0-100 kN, bearing ring,
10 steel discs Ø 25 mm (EN 12504-3), carrying cases.
Weight: 18 kg approx.

ACCESSORIES
C376-01 INSERTS, 30 mm Ø (UNI 9536) to embed.
Pack of 25 pieces.
C376-03 DISCS, 25 mm Ø (EN 12504-3) to embed.
Pack of 25 pieces.

DETERMINATION OF POWER EXTRACTION THROUGH INSERTS POST
INTRODUCED, WITH FORCED AND GEOMETRICAL EXPANSION
STANDARD: UNI 10157
It’s used to determine the needed power to extract from a concrete
element a metallic insert that is introduced in the element by
perforation.
This extraction power it’s used:
a) To investigate on concrete mechanic proprieties in site.
b) To estimate the in site concrete’s compression resistance in a
case of specific calibration curve.
The equipment is composed of:
C376 N Pullout test apparatusC376-10 Connecting rod furnished with bearing ring, to be used
with the pull-out instrument to hook the C376-11 insert.
C376-11 Geometric expansion pull-out insert dia. 18×80 mm.
Pack of 10 inserts.
C376-12 Hardened drill beat to perform a hole as required from
UNI standard and to put in a insert.
C376-13 Drill with SDS mandrin
C376-14 Striker, to put a insert into the hole
C376-15 Aspirant pump to clean the hole from detritus and dust
