B099 KIT MOT STRAIGHT EDGE WITH 2 WEDGES IRREGULARITY MEASUREMENT OF PAVEMENT SURFACE

Category:

STANDARD: EN 13036-7
Consisting of:

B099N

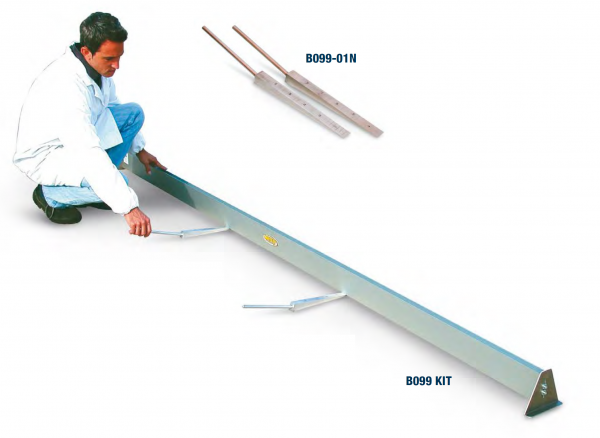

MOT STRAIGHT EDGE
Manufactured from anodized aluminium alloy, it is utilized to measure
irregularities of road pavement, floors, concrete pavement.
Length is 3000 mm, width 26 mm, adjustable in height
from 0 to 30 mm.
Supplied without graduated wedges.
Dimensions: 150x3050x130 mm approx.
Weight: 9 kg approx.

B102
BENKELMAN BEAM APPARATUS
STANDARD: ASTM D4965-03 | NF P98-200-2 | AASHTO T256
Basically similar to mod. B100 but manufactured according to the
French Specifications. Beam fulcrum ratio 2:1
Complete with wooden carryng case.
Dimensions: 430x1800x350 mm approx.
Weight: 16 kg approx.

ACCESSORY
B100-02
BENKELMAN INDICATOR GAUGE CALIBRATION UNIT, complete for
mod. B100 and B102. To verify the accuracy of the apparatus.
B099-01N
GRADUATED WEDGES, anodized aluminium alloy (set of two)
