STANDARDS: ASTM D88 | AASHTO T72
Used to determine the viscosity of petroleum products at specified
temperatures between 70 to 210 °F. Stainless steel made, the
Saybolt viscometer is supplied complete with two interchangeable
orifices Furol and Universal, oil bath, electric heater with digital
thermoregulator, stirrer, cooling coil, viscosity flask. Thermometers,
filter funnel, withdrawal tube are not included and must be ordered
separately. The viscometer is equipped of a dual safety thermostat
to prevent accidental over-heatings.
Power supply: 230V 1ph 50-60Hz 500W
Dimensions: 280x260x510 mm
Weight: 12 kg approx.
Saybolt Thermometers Range Subd.
B089 ASTM 17C +19 a +27 °C 0.1 °C
B089-01 ASTM 18C +34 a +42 °C 0.1 °C
B089-02 ASTM 19C +49 a +57 °C 0.1 °C
B089-03 ASTM 20C +57 a +65 °C 0.1 °C
B089-04 ASTM 21C +79 a +87 °C 0.1 °C
B089-05 ASTM 22C +95 a +103 °C 0.1 °C

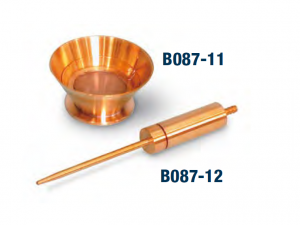

FILTER FUNNEL complete
with wire filter ring mesh.
WITHDRAWAL TUBE complete.
SPARES for SAYBOLT
B089-06 Furol orifice
B089-07 Universal orifice
B089-08 Saybolt flask 60 ml capacity
TWO TUBE SAYBOLT VISCOMETER
Basically structured as mod. B087 but with two tubes. Supplied
complete except thermometers, filter funnel and withdrawal tube.
Dimensions: 270x270x550 mm approx.
Weight: 14 kg approx.
