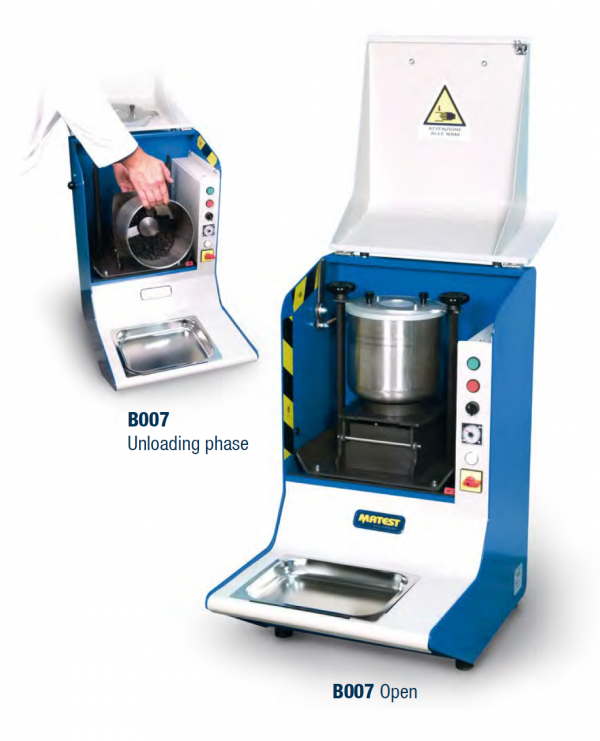

This instrument is used to break and crumble asphalt samples
to facilitate bulk density tests and laboratory testing purposes by
reducing the granulating time in few minutes with high quality
results. A rough asphalt sample of approx. 1 kg is poured into the
stainless steel bowl equipped, at its bottom, with three rotating
paddles. The cover is closed, the machine started, and the three
paddles break and crumble the sample in grains.
The bowl is now tilted to discharge the sample into the self supporting
suitable pan supplied with.
A hinged cabinet reducing noise protects the bowl. When opening
the cover while the splitter is working, a microswitch automatically
stops the machine. Conforming to CE Safety Directive.
Stainless steel bowl of 6 litres capacity
Multirange timer: sec/min/hour
Main switch, Start/Stop button
Switch for reverse mode of the rotating paddles
(very useful when the material restrains between paddle/bowl)
Paddles speed: 1400 rpm
Power supply: 230V 50Hz 1500W
Dimensions: 490x730x855 mm
Weight: 85 kg approx.
B007-11 Kit of three rotating paddles with
