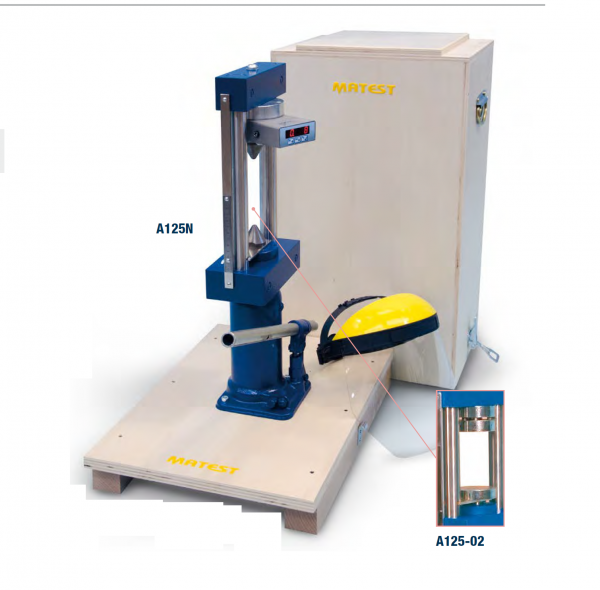

A125N DIGITAL POINT LOAD TESTER 56 KN (ROCK STRENGTH INDEX)

Categories: ,

STANDARDS: ASTM D5731 | ISRM

MAIN FEATURES
High precision electric load cell.
Capacity 56 kN.
Core specimens up to 4″ (101.6 mm).
Easy reading of the distance between the conical
points thanks to a graduated scale.

Used to determine the strength values of a rock specimen both in
the field and in the laboratory.
It consists of a load frame for applying loads, on which a manual
hydraulic jack is mounted.
The applied load is measured by a high precision electric load cell
with a digital display unit range 0-56 kN proving:
65.000 divisions 0.001 kN resolution
Linearity: 0.05% Hysteresis: 0.03%
Repeatability: 0.02%
The strength index (IS) is got by the formula P : D2 where P is
the strength and D the space between the two conical points.
Supplied complete with wooden carrying case, goggles, accessories.
Dimensions: 400x530x720 mm Weight: 25 kg approx.

A126
DIGITAL POINT LOAD TESTER 100 KN
(ROCK STRENGTH INDEX)

Capacity: 100 kN
Same as mod. A125N, but having load capacity up to 100 kN.

ACCESSORY for A125N and A126
A125-02 LOWER AND UPPER PLATE with seat ball to modify the
Point Load Tester into a portable compression tester
(see section “C” concrete, mod. C094) p. 323

SPARE
A125-01 Set of two hardened conical points.
