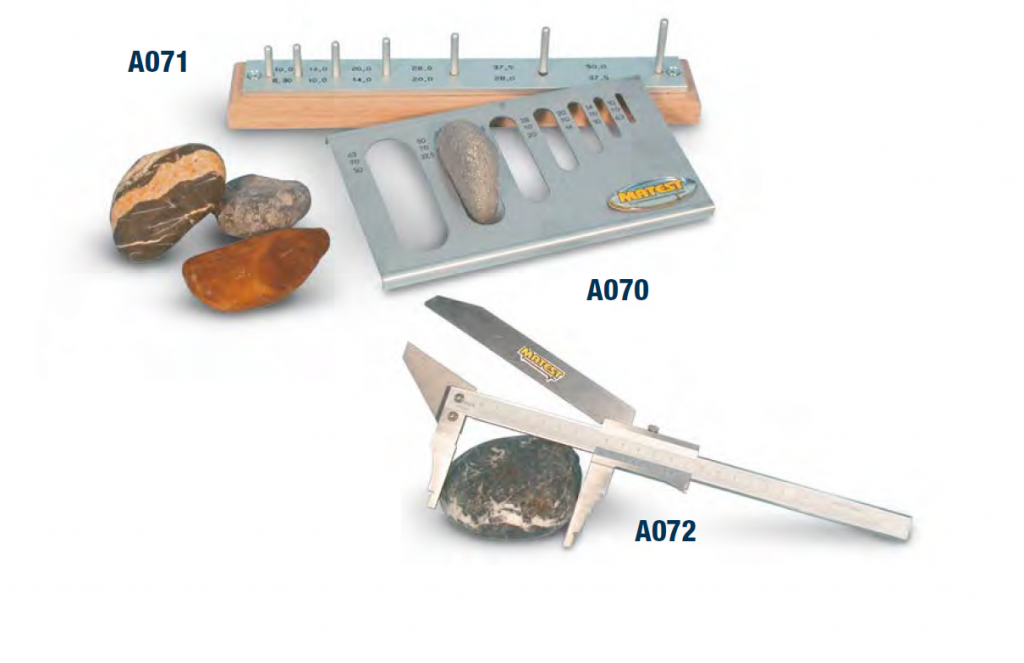

A070 FLAKINESS | THICKNESS GAUGE

Categories: ,

STANDARD: BS 812:105.1
Suitable to verify if aggregate is flaky; i.e. if its thickness is less than
0.6 of its nominal size. Constructed of heavy gauge stainless steel
sheet.
Weight: 600 g

A071
LENGTH GAUGE
STANDARD: BS 812:105.1
Ideal to determine if aggregate is elongated; i.e. if length is more
than 1.8 of nominal size. Mounted on a hardwood base.
Weight: 1 kg approx.

A072
SHAPE GAUGE – SHAPE INDEX
STANDARDS: EN 933-4, EN 933-5, EN 933-7
DIN 4226 | CNR N.95 | NLT 354
For measuring the length/thickness ratio of individual particles.
Weight: 500 g

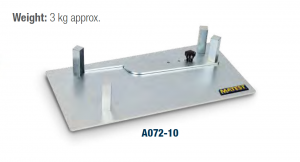

A072-10
PROPORTIONAL CALIPER
STANDARD: ASTM D4791
Used either for rapid determination of percentages of flat and
elongated particles in coarse aggregate fractions of ⅜” (9.5 mm)
or larger. Consisting of 8″x16″ (203.2×406.4 mm) base plate with
rubber feets, two fixed posts and a 12″ (305 mm) pivoting arm,
allowing ratios of 1:2, 1:3, 1:4, 1:5 to be obtained.
Weight: 3 kg approx.
